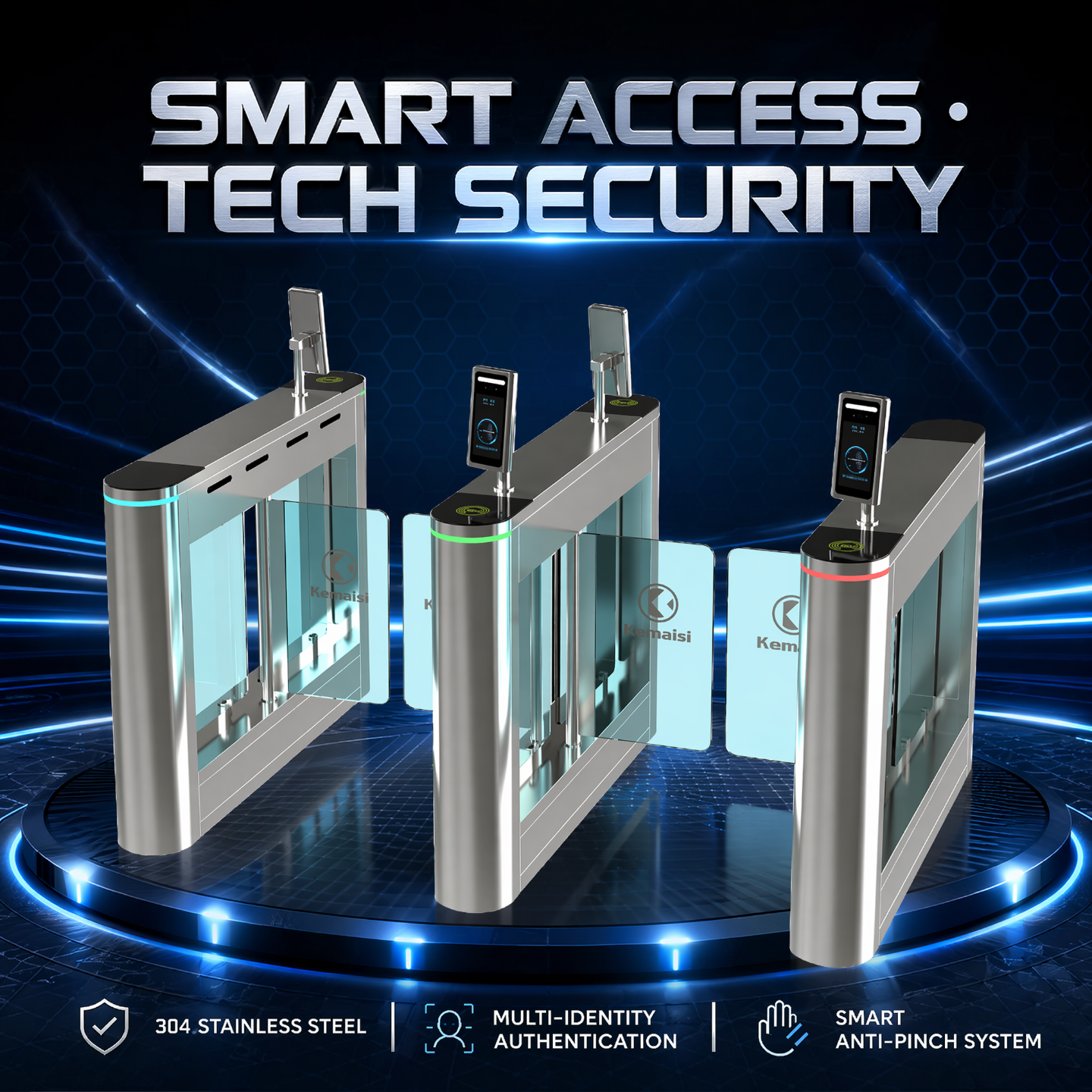

Entrance Access Control System For Visitor Swing Gate Turnstile
Product Description
This intelligent turnstile provides a comprehensive visitor flow control solution for crowded places such as exhibition halls and scenic spots . It supports fast entry via QR code , RFID card , or mobile NFC after online ticket purchase , with a throughput speed of over 30 people per minute . Multi lane flow distribution can be flexibly configured to achieve differentiated permission management for VIPs , members , and ordinary reservation visitors . Sensors inside the turnstile separately count entry and exit numbers , accurately calculating the real time number of people inside the venue and the remaining capacity . When the number reaches a preset threshold , an automatic alarm is triggered to prevent overcrowding . The system features a dynamic flow limiting mechanism : it can be set with a precise “ one out , one in ” rotation logic , or directly close the entry lanes and switch to one way exit mode , ensuring safe and controllable flow . The device has built in fault self diagnosis and alarm functions for easy maintenance . The operating status can be programmed on site via the built in keypad on the main control board . The main board is equipped with an LCD screen with a Chinese display , making operation intuitive . In the event of a power failure , the turnstile automatically sounds an alarm and opens the gate , ensuring emergency evacuation of people .
Features and Advantages
1 . Smart entry and multi channel ticket integration
Supports multiple ticket carriers such as QR code , RFID card , and mobile NFC , with a throughput speed of over 30 people per minute . Multi lane flow distribution can be configured to achieve tiered permission management for VIPs , members , and ordinary reservations .
2 . Real time visitor counting and capacity alert
Sensors inside the turnstile separately count entry and exit numbers , accurately calculating the real time number of people inside and the remaining capacity . When the number reaches a preset threshold , an automatic alarm is triggered , effectively preventing the risk of overcrowding .
3 . Dynamic flow limiting mechanism
A precise “ one out , one in ” rotation logic can be set to ensure controllable numbers , or the entry lanes can be directly closed and switched to one way exit mode to achieve mandatory flow limiting .
4 . Fault self diagnosis and alarm
Built in self diagnosis module triggers an automatic alarm when an abnormality occurs , helping maintenance staff quickly locate problems and reducing downtime .
5 . Programmable operating status
Via the built in keypad on the main control board , the turnstile operating parameters can be flexibly programmed on site to meet control requirements during different visitor flow periods .
6 . LCD screen with Chinese operation
The main board is equipped with an LCD screen with a Chinese display interface , making parameter settings intuitive and convenient , lowering the operational threshold .
7 . Power failure fire safety protection
In the event of a power failure , the turnstile automatically sounds an alarm and immediately opens the gate , ensuring unobstructed emergency evacuation of people and meeting fire safety requirements .
| Product Name |
Swing Turnstile |
| Barrier Material |
Acrylic Swing Arm |
| Passage Frame |
304 Stainless Steel / 201 Stainless Steel With Baked Paint |
| Product Size |
1200*200*980mm (Sizes Can Be Customized) |
| Traffic Speed |
30 People/Minute, Normally Open 40 People/Minute |
| Service Life |
≥5 Million Times |
| Channel Width |
550-850mm |
| Working Voltage |
AC220V±10%/50HZ 50W |
| Relative Temperature |
≤95% Not Condensing |
| Product Power |
100W |
| Weight |
40-65KG |
| Opening Time |
0.5 Seconds |
| Ambient Temperature |
-30℃-70℃ |
| LED indicator lights |
2 |
| Work Environment |
Indoor And Outdoor |
| Protection Grade |
IP43, IP54 |
| Infrared sensor |
4 Pairs |
| Access Control Type |
RFID/IC/ID card. Face/Iris recognition/Fingerprint identification.QR code. Mobile phone/NFC. Password. Remote door opening |
| Communication Interface |
Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Frequently Asked Questions
Q1:What is a Swing Barrier Gate?
A swing barrier gate is an intelligent pedestrian access control system that uses motor-driven glass panels to regulate entry and exit. It is commonly installed in office buildings, airports, metro stations, and commercial facilities.
Q2:Can this turnstile work with facial recognition?
Yes. It supports facial recognition terminals as well as RFID cards, QR codes, fingerprints, NFC, and mobile credentials.
Q3:Is this gate suitable for disabled access?
Yes. The wide passage design complies with accessibility requirements and allows wheelchairs, luggage, and carts to pass comfortably.
Q4:Can the system be integrated with third-party software?
Absolutely. The gate supports TCP/IP, RS485, Wiegand, and API integration, making it compatible with most access control and visitor management platforms.
Q5:Is OEM customization available?
Yes. We provide OEM and ODM manufacturing services, including logo customization, housing dimensions, software integration, color options, and packaging.
Why Choose Our Full Height Turnstile Gate?
Choosing the right pedestrian security gate is essential for protecting your facility. Our full height turnstile system combines mechanical strength, smart access control compatibility, and reliable performance to deliver a professional security entrance solution.
Whether you need access control for a factory, stadium, government building, transportation station, or restricted facility, this high-security turnstile provides an effective way to manage pedestrian access.
